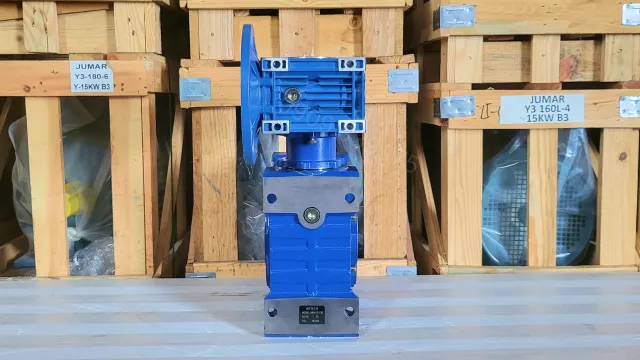

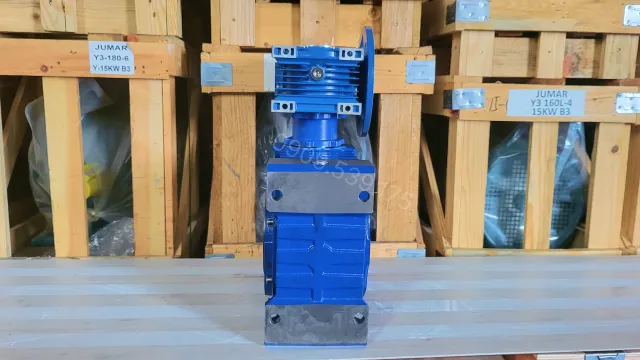

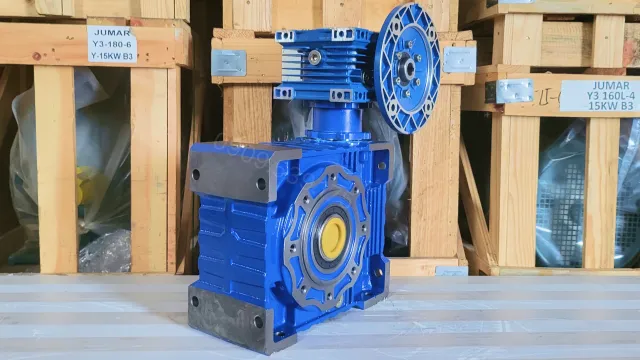

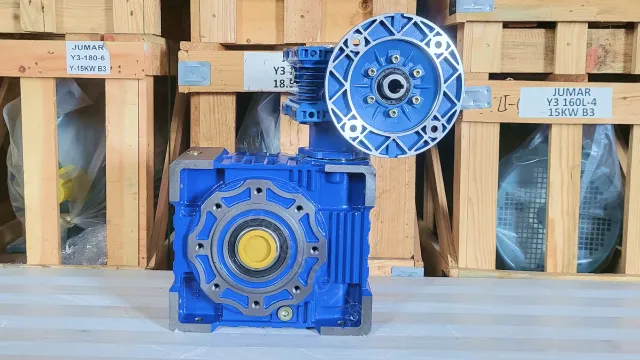

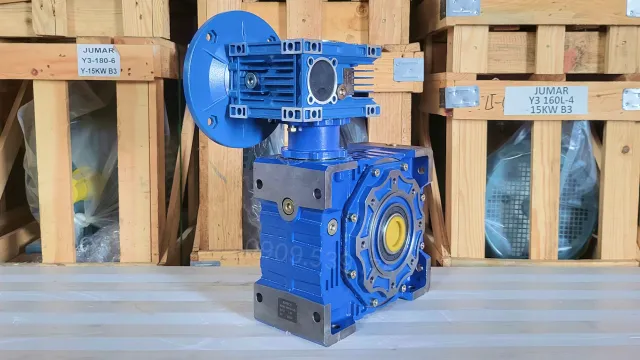

2-Stage NMRV Gearbox 75 – 150

The 2-Stage NMRV Gearbox 75 – 150 is a gearbox line formed by two NMRV gearboxes connected in series. As a result, the 2-stage gearbox can achieve deep speed reduction and strong pulling force, making it ideal for industrial machinery such as conveyors, presses, mixers, or automation equipment requiring continuous operation.

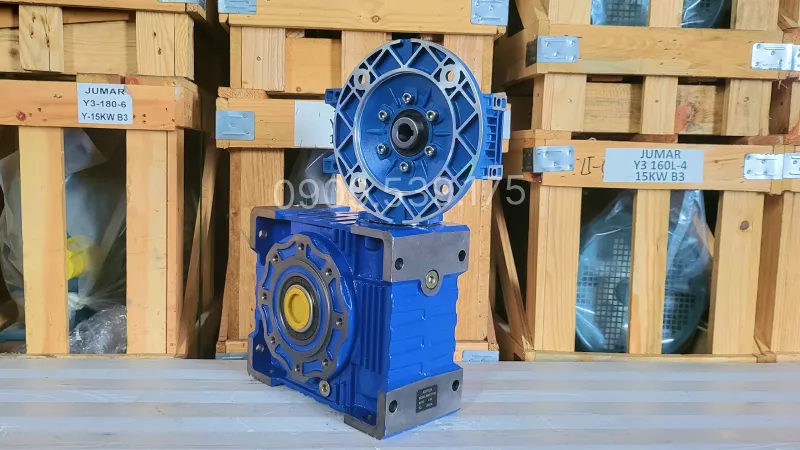

Overview Design of the 2-Stage NMRV Gearbox 75 – 150

This 2-stage NMRV gearbox series is designed with a modern style, sturdy structure, and high finish, ensuring both durability and aesthetics. The housing is cast as a single piece from high-grade aluminum alloy, helping to reduce weight while maintaining rigidity, good heat dissipation, and high corrosion resistance.

Inside, the worm and worm gear assembly is precisely machined using CNC technology, ensuring smooth transmission, reduced noise and friction, and enhanced working efficiency. As a result, the device operates stably for a long time, suitable for harsh working environments such as workshops, heavy-duty conveyors, or continuous production lines.

Structure of the 2-Stage NMRV Gearbox 75 – 150

The 2-Stage NMRV Gearbox 75 – 150 has a detailed structure including:

• Worm gear: Made of high-quality copper alloy or brass, offering good wear resistance and ensuring smooth, stable power transmission.
• Worm shaft: Machined from hardened alloy steel, with a polished surface to reduce friction and increase operating lifespan.
• Housing: Made of die-cast aluminum, featuring lightweight, fast heat dissipation, and oxidation resistance, suitable for harsh environments.
• Intermediate coupling: Connects the two transmission stages, ensuring smooth torque transmission and reducing vibration during operation.
• Input shaft: Directly connects to the electric motor through a flange or flexible coupling.
• Output shaft: Made of high-strength hardened steel, available in solid or hollow forms, allowing easy connection to drive equipment such as conveyors, screw conveyors, or rotating mechanisms.

Technical Specifications of the 2-Stage NMRV Gearbox 75 – 150

The 2-Stage NMRV Gearbox 75 – 150 is assembled from two worm gearboxes, namely NMRV 75 and NMRV 150. Each stage handles a reduction phase, helping to create a large gear ratio and high torque.

NMRV 75 Gearbox

The NMRV 75 gearbox is the first transmission stage, responsible for reducing speed from the motor before transmitting it to the NMRV 150 stage.

Technical Specifications

NMRV 150 Gearbox

The following technical specifications help determine installation dimensions

Technical Specifications

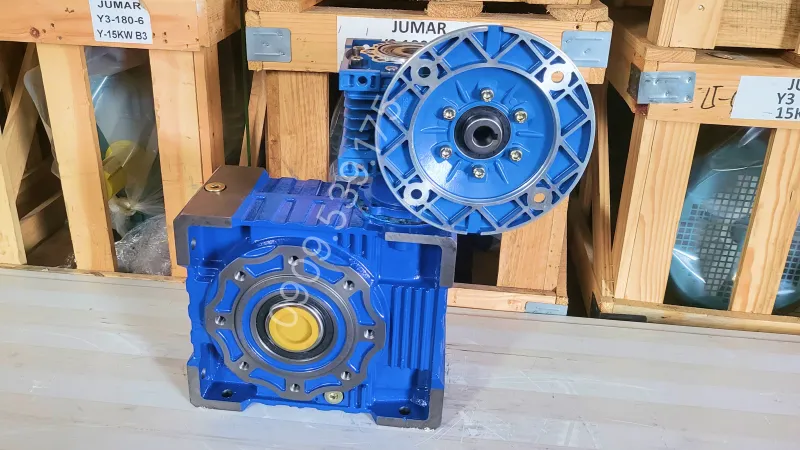

Applications of the 2-Stage NMRV Gearbox 75 – 150

The NMRV 75 – 150 gearbox is widely applied in many industrial fields thanks to its stable transmission and strong pulling force.

• Conveyor systems, production conveyor belts, packaging machines, material coiling machines.
• Mixers, blenders, grinders in food, chemical, and building material factories.
• Presses, lifting equipment, screw conveyors, rotating mechanisms in industrial automation systems.
• Mining equipment, mechanical machinery, metal ore sorting and screening machines.

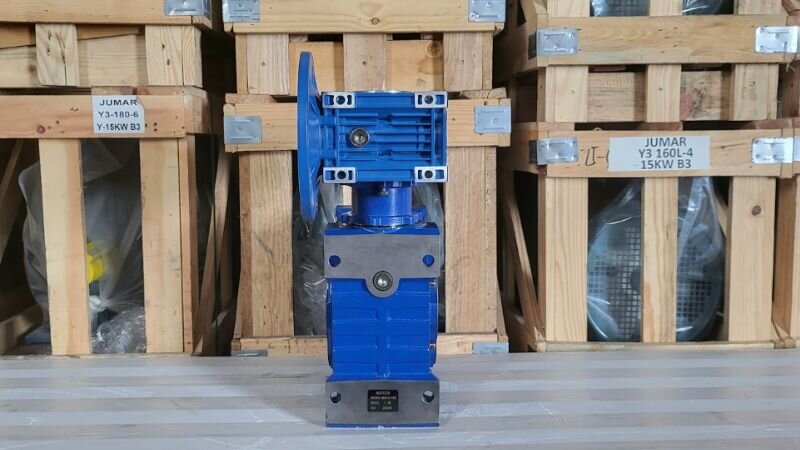

Installation Guide for 2-Stage NMRV Gearbox

To properly install the 2-stage NMRV gearbox, follow these steps:

Step 1: Inspect the equipment

Inspect the gearbox body, input shaft, output shaft, flange, and bolt holes. Ensure all components are complete and free of damage prior to installation.

Step 2: Connect the flange to the motor

Bring the gearbox flange into position to mount with the motor. Align the shaft and flange concentrically, then tighten the bolts to secure the assembly.

Step 3: Post-installation inspection

Check all bolts, shaft concentricity, and contact points between the motor and the gearbox before powering on.

Step 4: Trial operation

Run the system with no load, check vibration, noise, and observe joining points to detect oil leaks or abnormal signs.

In addition to this article, you can refer to the summary video to see the actual installation steps. Besides, the gearbox videos on the Thanh Thai Motor channel will provide further instructions on inspecting, assembling, and operating gearbox lines.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
