NMRV 130 Gear Motor 7.5kW 10Hp

The NMRV 130 Gear Motor 7.5kW 10Hp is a gear motor combined by an electric motor and a gearbox. This combination creates a complete gear motor that helps users control rotational speed to suit their industrial application requirements.

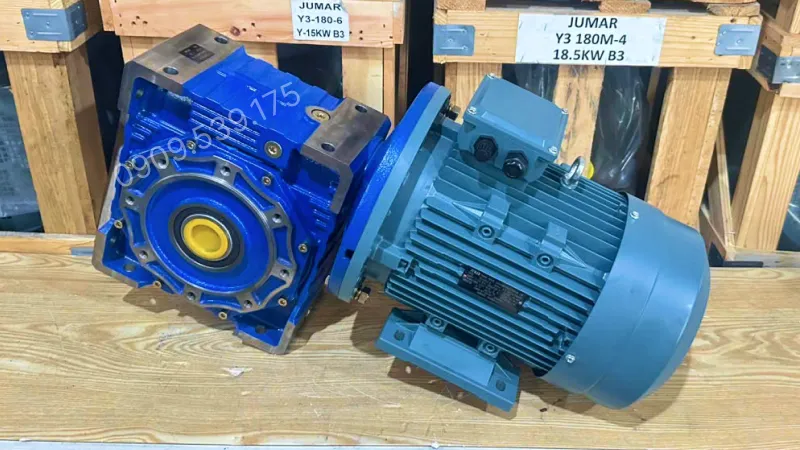

Design Overview of the NMRV 130 Gear Motor 7.5kW 10Hp

The NMRV gear motor features a high-quality, durable solid cast iron or aluminum outer housing, which protects the motor from external environmental damages, along with an electrostatic powder coating to prevent rust during transportation.

The product is a perfect combination of a 3-phase electric motor and an NMRV gearbox-specifically, a 7.5kW 10Hp 3-phase electric motor and an NMRV 130 gearbox-forming the NMRV 130 Gear Motor 7.5kW 10Hp.

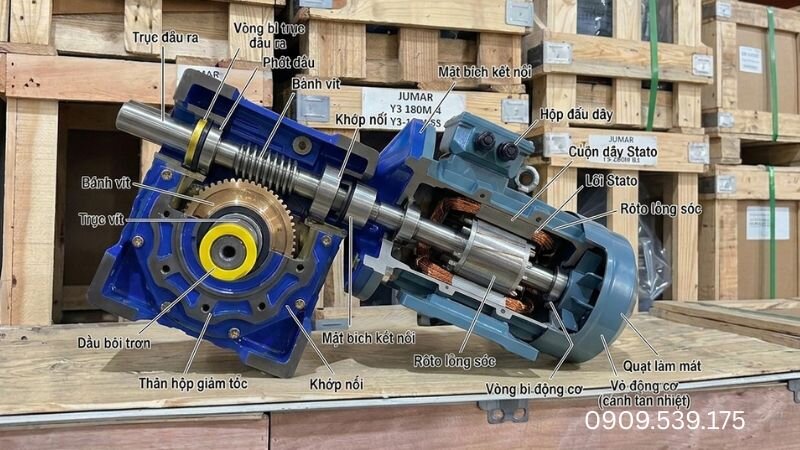

Main Structure of the NMRV 130 Gear Motor 7.5kW 10Hp

The NMRV 130 Gear Motor 7.5kW 10Hp belongs to the 3-phase gear motor line with the following main structure:

• 7.5kW 10Hp 3-Phase Electric Motor:
  • Stator: The stationary part, wound with 100% copper wire, playing the role of generating the magnetic field force.
  • Rotor: Made of sturdy, rust-resistant steel laminations, it is the rotating part driven by the magnetic field generated by the stator.
• NMRV 130 Gearbox:
  • Gear: Made from high-temperature treated steel, helping it withstand high industrial temperatures and loads, allowing for a variety of transmission ratios.
  • Worm shaft: Fitted with a hollow shaft, made of steel for good heat dissipation, preventing motor overload and enhancing smooth and quiet operation.

Technical Specifications of the NMRV 130 Gear Motor 7.5kW 10Hp

Below are the key technical specifications and mounting dimensions of the product

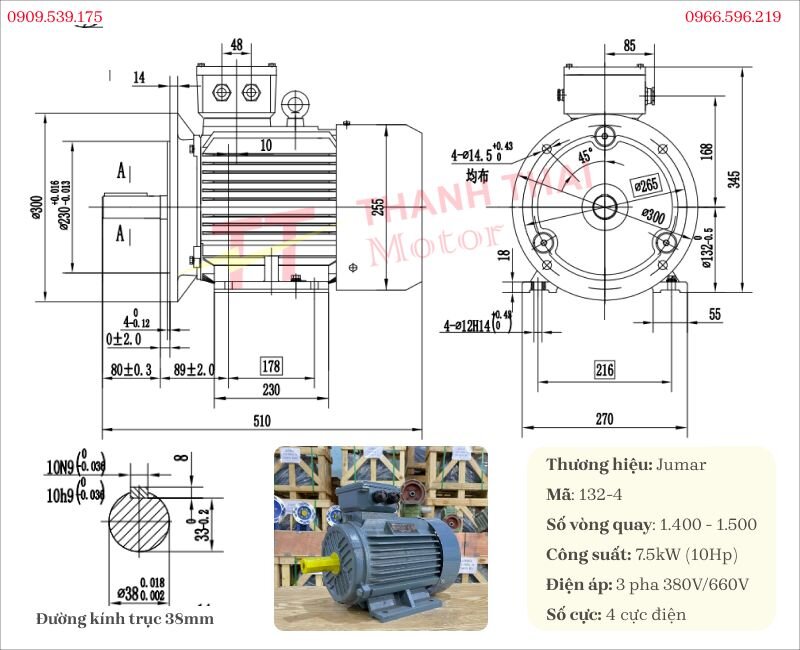

Technical Specifications of the 7.5kW 10Hp 3-Phase Electric Motor

The technical drawing details the mechanical dimensions, installation parameters, and connection positions of the motor

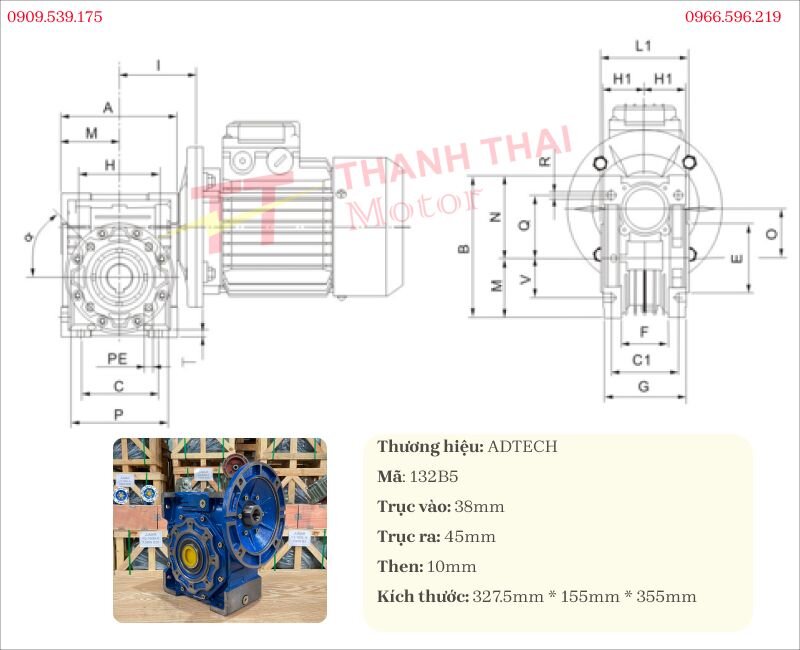

Technical Specifications of the NMRV 130 Gearbox

The technical drawing fully describes the installation dimensions, overall dimensions, and connection positions of the NMRV 130 gearbox

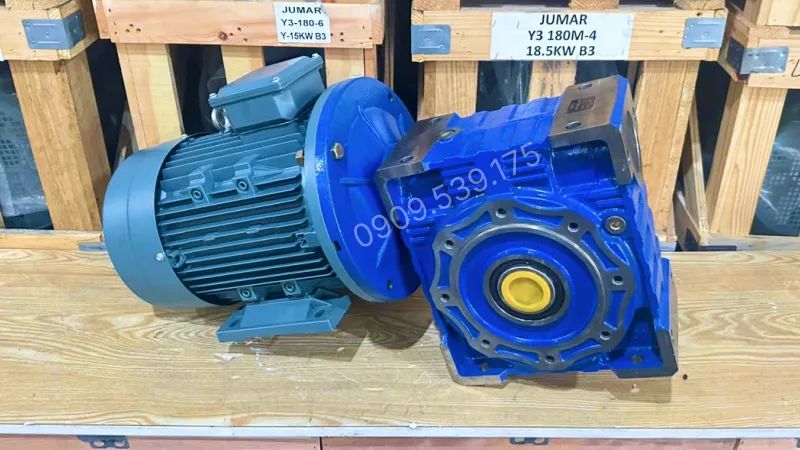

Applications of the NMRV 130 Gear Motor 7.5kW 10Hp

The NMRV 130 Gear Motor 7.5kW 10Hp product line, belonging to the gear motor segment above 3.7kW, is commonly used in industrial plants:

• Meat mincing machines in commercial processing.
• Self-pulling and pushing machines.
• Used in mechanical engineering, drilling machines, excavation equipment, elevators, and asphalt paving presses.

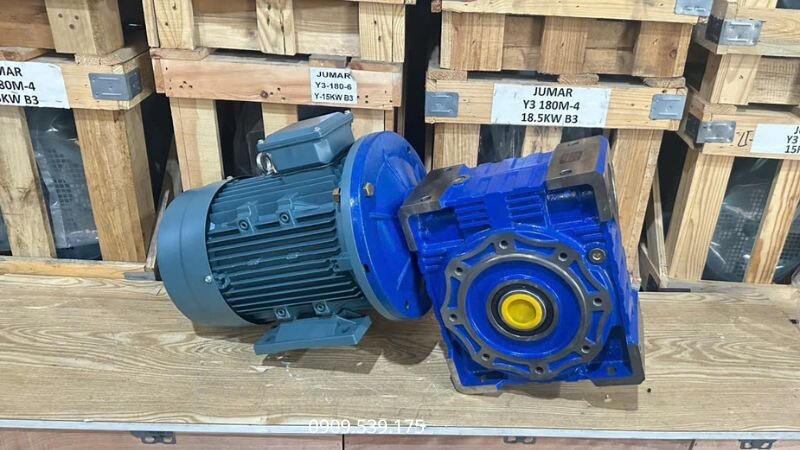

Guide on Assembling an NMRV Gearbox with a 3-Phase Electric Motor

To support customers during usage, Thanh Thai Motor provides a detailed video guide on how to assemble an NMRV gearbox onto a 3-phase electric motor step by step.

• Step 1: Fully prepare the gearbox, electric motor, and necessary accessories, while checking the equipment’s condition before installation.
• Step 2: Check the flange dimensions, shaft diameter, and connection positions to ensure compatibility between the motor and gearbox.
• Step 3: Proceed to assemble the motor with the NMRV gearbox, precisely align the installation position, and tighten the fixing bolts.
• Step 4: Connect the power supply to the motor, test run the system, and check the stability of the drive assembly upon completion.

The instructional video helps viewers easily follow the entire practical assembly process, from preparation to operational testing. The gear motor video content is presented concisely and intuitively, supporting correct technical installation, minimizing errors, and enhancing the efficiency of the gear motor. Customers can refer to many other technical guide videos and product reviews at Thanh Thai Motor to update themselves with useful knowledge.

Warranty, Shipping, and Commitment Policies at Thanh Thai Motor

When purchasing gearmotors at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 Months

All gearmotor products at Thanh Thai Motor come with an official 24-month warranty. We are committed to clear after-sales service, with quick and transparent processing procedures – ensuring customer peace of mind during use.

Nationwide Delivery

No matter which province or city you are in, Thanh Thai Motor is always ready to support fast delivery, ensuring on-time delivery, careful packaging, and safe transportation. We supply a full range of 220V gearmotors, variable speed motors, etc., for the diverse needs of customers nationwide.

Products Meet European Quality Standards with German Technology

Our products are manufactured using modern German technology, meeting European standards. Models such as integrated gearmotors, variable speed motors, or 220V gearmotors all ensure stable operation and superior durability.

Competitive Pricing, Good Discounts for Dealers and Bulk Purchasers

We offer affordable gearmotors, suitable for projects with limited budgets. In addition, Thanh Thai Motor has special policies and offers for dealers and bulk purchasers.

Quality Commitment

All 220V gearmotors here are wound with pure copper wire. This ensures powerful, smooth operation and energy savings.

Full Certification Documents: CO, CQ,...

All products such as integrated gearmotors, conveyor motors, or speed reducers come with full Certificates of Origin (CO) and Quality (CQ), meeting stringent technical requirements in industry.
