NMRV 110 Gear Motor 4kW 5.5Hp

The NMRV 110 Gear Motor 4kW 5.5Hp is a product line combined with an electric motor and a gearbox, creating a unique gear motor. The product is easy to install, reasonably priced, of good quality, and highly efficient, helping to optimize motor performance.

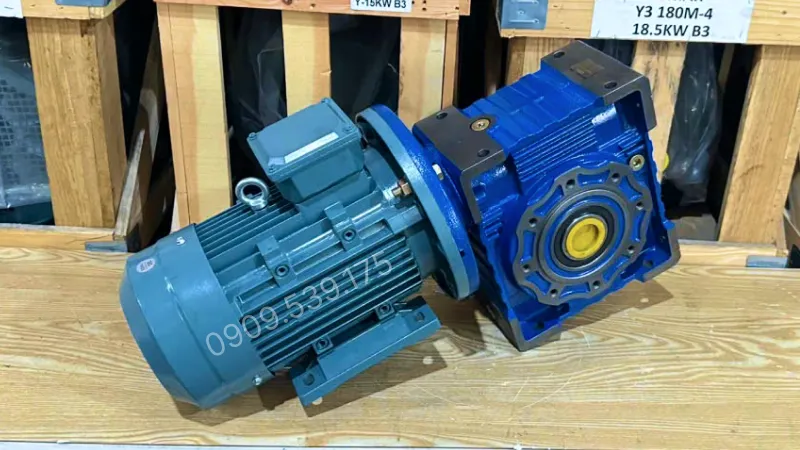

Overview of the NMRV 110 Gear Motor 4kW 5.5Hp

The NMRV gear motor features an external structure made of cast iron or aluminum, with a sturdy, durable shell that minimizes damage, supported by a powder-coated finish to protect the motor against scratches.

The NMRV 110 Gear Motor 4kW 5.5Hp is a specially combined product line consisting of a 3-phase electric motor and an NMRV gearbox, specifically a 3-phase 4.0kW 5.5Hp electric motor with an NMRV 110 gearbox.

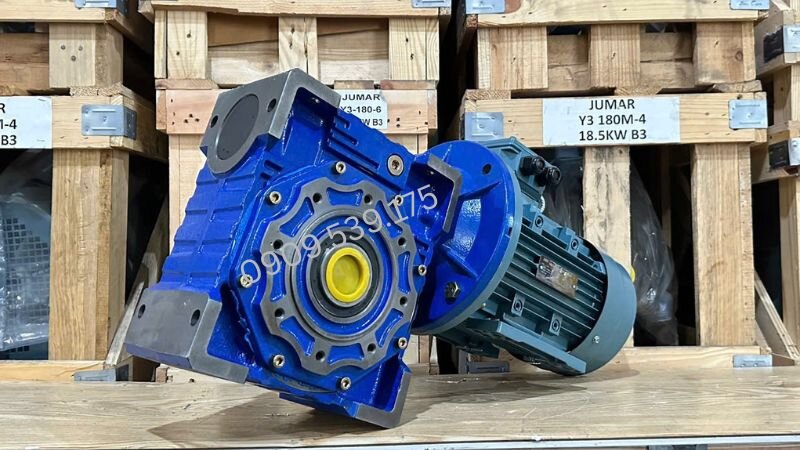

Structure of the NMRV 110 Gear Motor 4kW 5.5Hp

The NMRV 110 Gear Motor 4kW 5.5Hp is a 3 phase gear motor used by customers as follows:

3-Phase 4kW 5.5Hp Electric Motor

• Stator: The stationary component in the machine containing magnetic steel cores processed with cold-rolling technology to minimize eddy current losses. The internal windings use pure copper material, offering high energy conversion efficiency and protecting the motor from overheating under load.
• Rotor: The flexible rotating part precisely dynamically balanced, integrated with a load-bearing steel core inside. When subjected to the changing magnetic field of the stator, the rotor generates strong torque, maintaining a stable rotational speed for the entire system.

NMRV 110 Gearbox

• Worm wheel: An important component in the transmission set, cast from specially formulated bronze alloy with high hardness, effectively resisting mechanical wear. This component allows the machine to achieve various transmission ratios, ensuring stable load-bearing capacity in light and medium industrial applications.
• Worm shaft: Designed as a hollow shaft, crafted from non-oxidizing high-strength steel material, enhancing heat dissipation to the environment. This design not only helps the machine operate durably but also keeps the transmission process smooth, minimizing vibration to the maximum.

Technical specifications of the NMRV 110 Gear Motor 4kW 5.5Hp

As a combination of a 3-phase 4kW electric motor and an NMRV 110 gearbox, it delivers effective speed reduction, stable operation, and high durability. Below are the detailed technical specifications of each component making up the product.

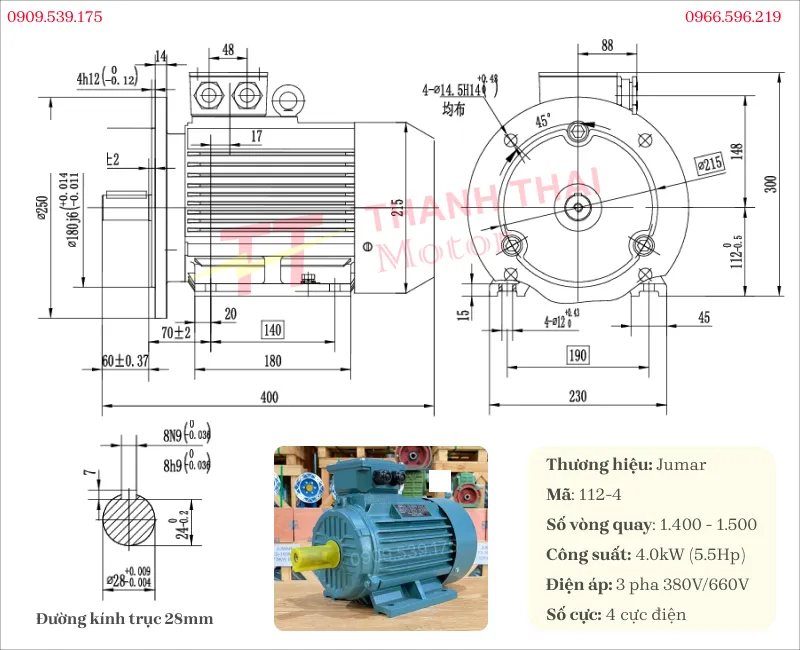

Technical specifications of the 3-phase 4kW 5.5Hp electric motor

Below is a summary of detailed technical specifications for the 3-phase 4kW 5.5Hp electric motor. The device is specialized for industrial machinery systems, processing lines, and pumping systems that require durability.

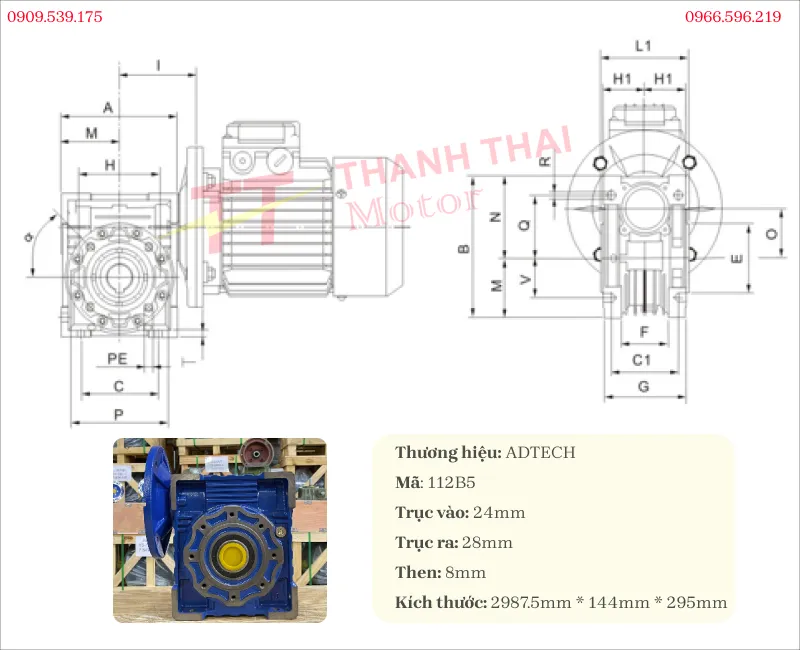

Technical specifications of the NMRV 110 gearbox

Designed with a sturdy worm wheel – worm shaft structure, smooth operation, and high stability. This gearbox series is capable of meeting various transmission ratios, suitable for industrial transmission systems.

Code	112B5
Input shaft	24mm
Output shaft	28mm
Keyway	8
Dimensions	2987.5mm * 144mm * 295mm

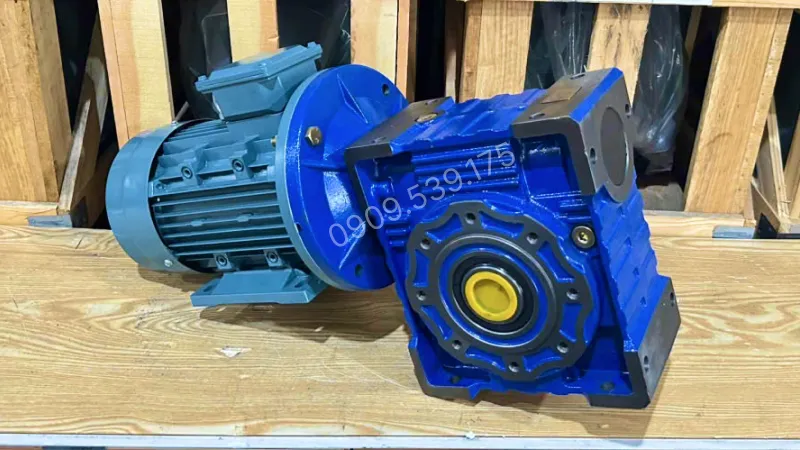

Common applications of the NMRV 110 Gear Motor 4kW 5.5Hp

The NMRV 110 Gear Motor 4kW 5.5Hp product line, belonging to the gear motor segment above 3.3kW, is commonly used for industrial factories:

• Conveyor belts: Powering packaging lines, transporting heavy materials, soil, rocks, or agricultural produce in workshops.
• Mixing and stirring systems: Providing strong traction for chemical mixers, flour mixers, or animal feed turners.
• Screw conveyors: Transporting sand, stone, cement, or grain seeds horizontally or inclined.
• Winched and hoisting systems: Used in small overhead cranes, marine fishing net winches, or equipment lifting.
• Pressing and rolling machines: Applied in wood presses, coconut shredders, or corrugated sheet rolling machines thanks to high torque and good braking capability from the worm shaft system.

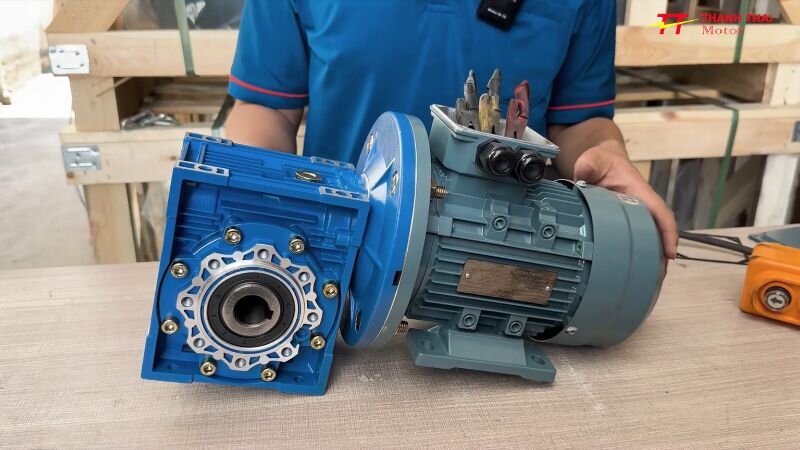

Guide to installing the NMRV onto a 3-phase motor

Step 1: Equipment preparation

• Prepare the 3-phase electric motor and the NMRV gearbox

Step 2: Connecting the motor and gearbox

• Proceed to assemble the motor shaft into the gearbox bore hole so that the flanges of both parts match each other.

Step 3: Attaching and tightening the fixing screws

• Use 4 bolts (usually included when purchasing the gearbox) to insert into the holes on the flange.
• Hand-tighten the bolts slightly into the threads.
• Then, use a 17mm wrench to tighten all 4 bolts securely to firmly fix the two parts together.

Step 4: Wiring the motor

• Use a screwdriver to open the terminal box cover on the motor body.
• Proceed to connect the power wires to the terminals inside the terminal box.

Step 5: Testing the equipment

• After wiring is complete, supply power to check whether the motor operates and the output shaft of the gearbox rotates stably.

Thanh Thai Motor provides high-quality NMRV 110 Gear Motor 4kW 5.5Hp, well-meeting transmission needs in various production fields. For a more intuitive view of the product, please refer to our regularly updated summary and gear motor videos. Contact 0909.539.175 for technical support and the best quotation.
