Heavy Duty R-Series Inline Helical Gear Motor 75kW 100Hp

Heavy Duty R-Series Inline Helical Gear Motor 75kW 100Hp is a large-capacity gear motor designed to optimally meet transmission requirements in heavy industrial production environments. With superior load capacity, stable operation, and energy-saving performance, the Heavy Duty R-Series Inline Helical Gear Motor is a reliable choice for systems with high and continuous operating frequencies.

Overview of Heavy Duty R-Series Inline Helical Gear Motor 75kW 100Hp

75kW 100Hp Electric Motor:

• Material: The casing is cast from monolithic grey cast iron for exceptional durability, optimizing heat dissipation and withstanding high-intensity vibrations.
• Engineering: Uses high-quality copper windings with Class F or H insulation for excellent heat resistance in harsh environments. The rotor is precisely dynamically balanced to ensure smooth operation at high speeds.

R-Series Inline Helical Gearbox:

• Function: Reduces rotational speed, powerfully amplifies torque, and ensures stable heavy-load capacity for machinery systems.
• Design: Modern coaxial structure allows direct power transmission, achieving optimal transmission efficiency (>95%) and maximizing energy savings during operation.

Structure of Heavy Duty R-Series Inline Helical Gear Motor 75kW 100Hp

This heavy duty gear motor is an integration of an electric motor and a gearbox. Specifically, a 3-phase electric motor and an R-Series Inline Helical Gearbox, ensuring powerful transmission efficiency and high durability:

Motor Body:

• Stator & Rotor: High-quality electrical steel core system combined with pure copper windings creates a powerful magnetic field, helping the motor achieve a true capacity of 75kW even when operating under heavy loads for extended periods.
• Bearings & Shaft: Uses heavy-load bearings (typically SKF or NSK), hardened shafts machined to withstand maximum torsional force, ensuring absolute stability when operating large machinery systems.

R-Series Gearbox:

• Gear System: Carbon-itrided alloy steel helical gears that are hard and sturdy, offering excellent load capacity, smooth and durable operation.
• Lubrication System: Sealed oil chamber design with premium oil seals, optimizing cooling and friction reduction for smooth machine operation.

Technical Specifications of Heavy Duty R-Series Inline Helical Gear Motor 75kW 100Hp

Featuring a sturdy structure and excellent load capacity, it is suitable for high-capacity drive systems requiring durable and stable operation.

Applications of Heavy Duty R-Series Inline Helical Gear Motor 75kW 100Hp

• Mining & Material Production: Installed for conveyors carrying tens of tons of rock, ore, and coal; operating bucket elevators and screw conveyors in concrete batching plants.
• Heavy Industry: Used in cement production lines, steel rolling mills, or large raw material grinding and mixing systems.
• Environment & Water Treatment: Operating large agitators or sludge scraper systems in settling tanks of industrial wastewater treatment plants.
• Processing & Agriculture: Driving high-capacity presses, livestock feed grinders, or heavy-duty packaging line systems.

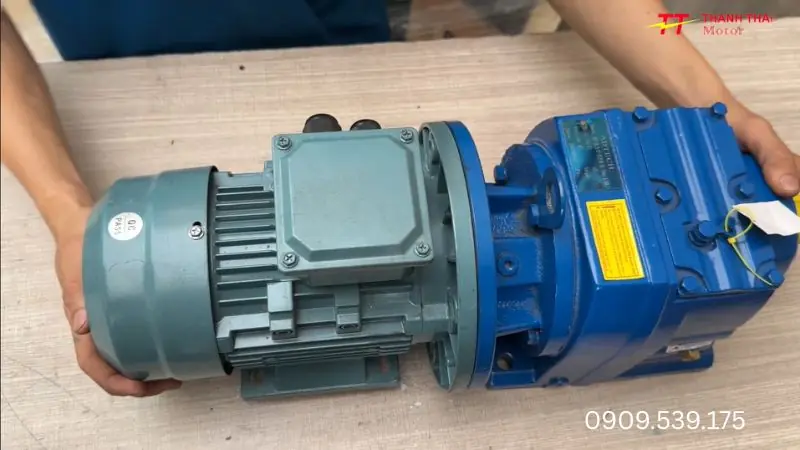

Instructions for Installing R-Series Inline Helical Gearbox with 3-Phase Electric Motor

• Step 1: First, place the 3-phase electric motor and the R-Series Inline Helical Gearbox on the same flat surface. Align the direction so that the protruding shaft end of the motor points directly towards the center of the hollow shaft hole on the gearbox flange.
• Step 2: Perform the assembly action by manually moving this heavy-duty gearbox straight toward the body of the 3-phase electric motor. Push evenly until the metal flange rims of the two devices touch closely, fitting tightly with no gap in between.
• Step 3: Take the screws and thread them through all the pre-drilled connection holes around the mating flange rim. Then, use a tool to tighten these screws securely to lock and fix the gearbox firmly attached to the motor.

Heavy duty gear motors are powerful drive solutions for conveyor systems, crushers, mixing plants, overhead cranes, and many other heavy industrial applications. Thanks to their high load capacity, stable operation, and durable lifespan, the products well meet the demands of continuous operation in harsh environments.

To refer to the detailed structure, actual dimensions, and operating capabilities of the equipment, you can watch the gear motor videos produced by Thanh Thai Motor. In addition, the comprehensive video category also shares much useful content about gear motors, heavy duty gearboxes, wiring instructions, and experience in choosing equipment suitable for each usage need.
