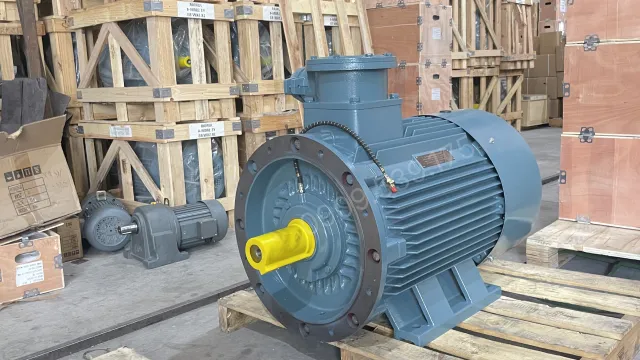

Explosion-proof Motor 45kW 60Hp

The Explosion-Proof Motor 45kW 60Hp converts electrical energy into mechanical energy, ensuring energy efficiency and explosion safety. This electric motor has been highly rated among explosion-proof series for many years. Let’s explore this product with Thanh Thái Motor!

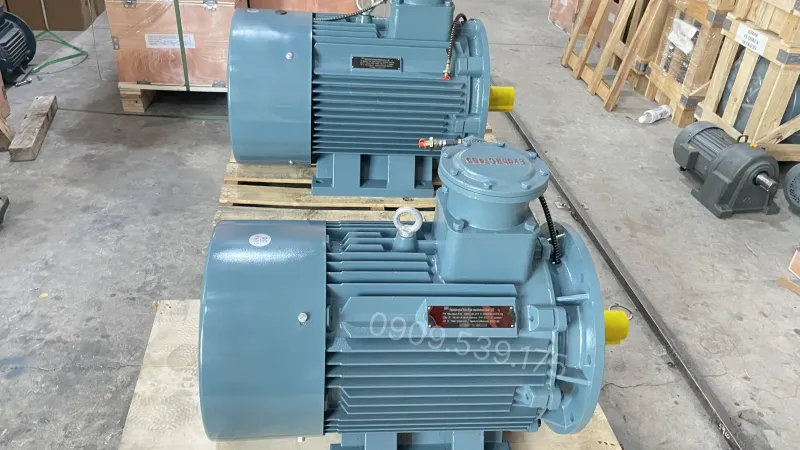

General design of the Explosion-Proof Motor 45kW 60Hp

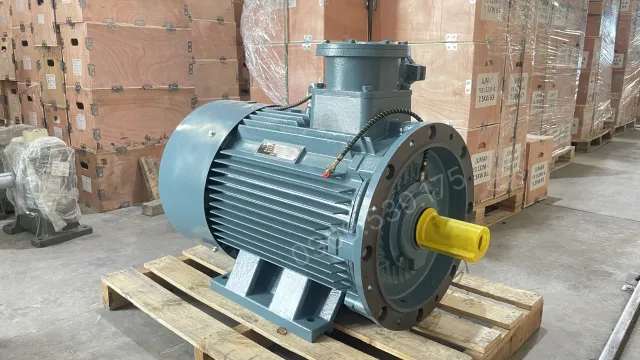

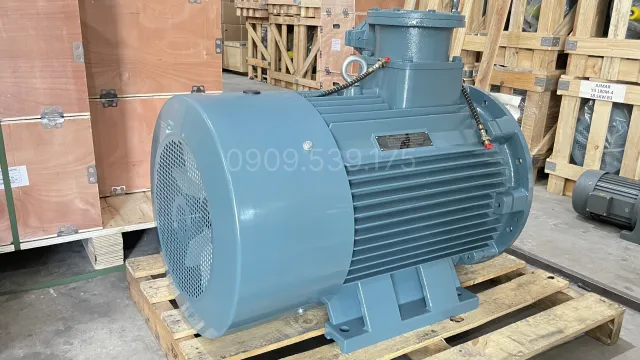

This explosion-proof motor features a special design with a characteristic gray/blue paint finish, providing clear identification. The motor housing is made of rigid cast iron, offering strong impact resistance and high durability in harsh working environments. The cast iron material also helps the motor resist corrosion, rust, and the effects of hazardous chemicals.

In particular, the Explosion-Proof Motor 45kW 60Hp is evaluated as superior to other explosion-proof motor lines in the same segment above 3.7kW due to its effective explosion-proof capability. This motor is specially designed to ensure safety in the event of an electrical failure, minimizing risks and enhancing reliability during operation.

Internal structure of the Explosion-Proof Motor 45kW 60Hp

To maintain continuous operation performance at 45kW and ensure absolute safety in chemical and gas environments, all internal components of the motor must meet explosion-proof certification (Ex d):

• Stator: Static magnetic field core pressed from low core-loss electrical steel sheets. Pure copper windings coated with thick insulation, multi-layer vacuum varnish impregnation (Class F or Class H) to withstand high temperatures and completely prevent electrical discharge phenomena.
• Rotor: Sturdy cast squirrel-cage rotor core, with extremely smooth surface machining and computer dynamic balancing to completely eliminate mechanical friction causing sparks inside the motor chamber.
• Bearings: Assembled using heavy-duty bearings from top global brands (SKF, NSK, FAG). The bearing system is integrated with multi-layer seals and non-flammable lubricating grease to prevent dust and gas from entering the shaft core.

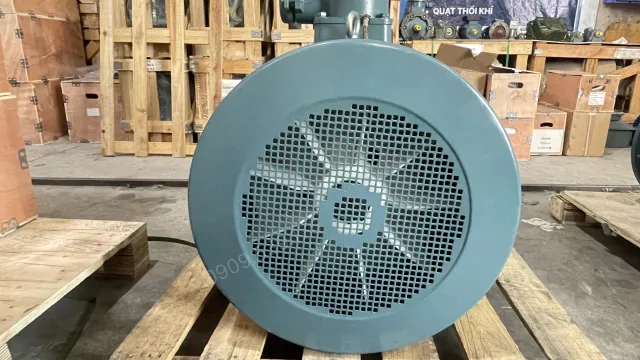

• Cooling system: The forced centrifugal cooling fan must be made of anti-static plastic or specialized aluminum alloy material to avoid generating static sparks when rubbing against the air.

What types of explosion-proof electric motors 45kW 60Hp are available?

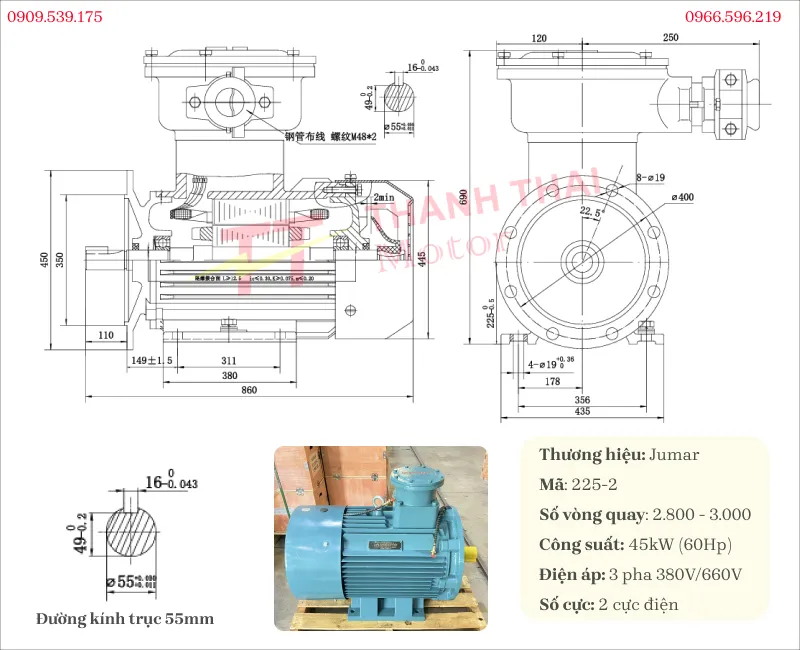

Explosion-proof motor 45kW 60Hp 2 poles (2,800 – 3,000 rpm)

This is the fastest rotational speed segment, specialized for equipment requiring huge airflow or fluid pressure generation.

Technical specifications:

Model	225M
Shaft diameter	55mm
Keyway	16mm
Flange diameter	450mm
Weight	350kg
Dimensions	820 x 450 x 560 mm
Mounting type	Foot-mounted (B3), Flange-mounted (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Practical applications:

• Oil and gas pumping systems: Driving large-capacity centrifugal pumps at filling stations, petroleum pipelines, or internal fire pump stations of port terminals.
• Explosion-proof ventilation: Operating high-pressure centrifugal exhaust fans to discharge toxic gases and supply fresh air to deep coal mining shafts.
• Centrifugal air compression systems: Used for high-speed centrifugal air compressors in chemical and plastics manufacturing plants.

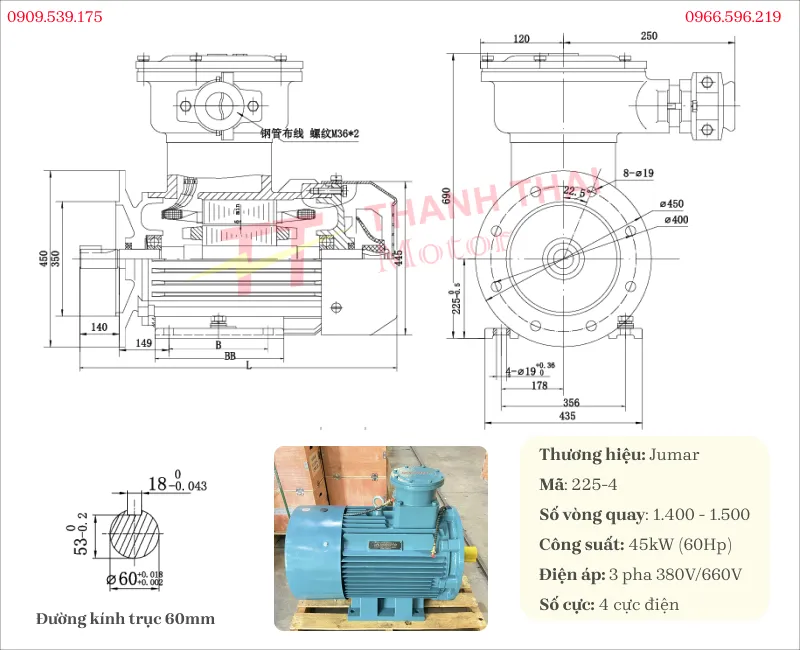

Explosion-proof motor 45kW 60Hp 4 poles (1,400 – 1,500 rpm)

This is the standard and most popular motor line, providing a perfect balance between smooth rotational speed and strong torque, offering very high durability.

Technical specifications:

Model	225M
Shaft diameter	60mm
Keyway	18mm
Flange diameter	450mm
Weight	380kg
Dimensions	820 x 450 x 560 mm
Mounting type	Foot-mounted (B3), Flange-mounted (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Practical applications:

• Industrial compressed air: Running screw air compressor stations to supply energy for automation systems in flammable workshops.
• Mineral conveyor belts: Driving steel-cord reinforced rubber conveyor systems transporting coal and iron ore from extraction areas.
• Crushers and shredders: Applied in environments with high dust explosion risks in sawdust pellet manufacturing plants and chemical powder grinding facilities.

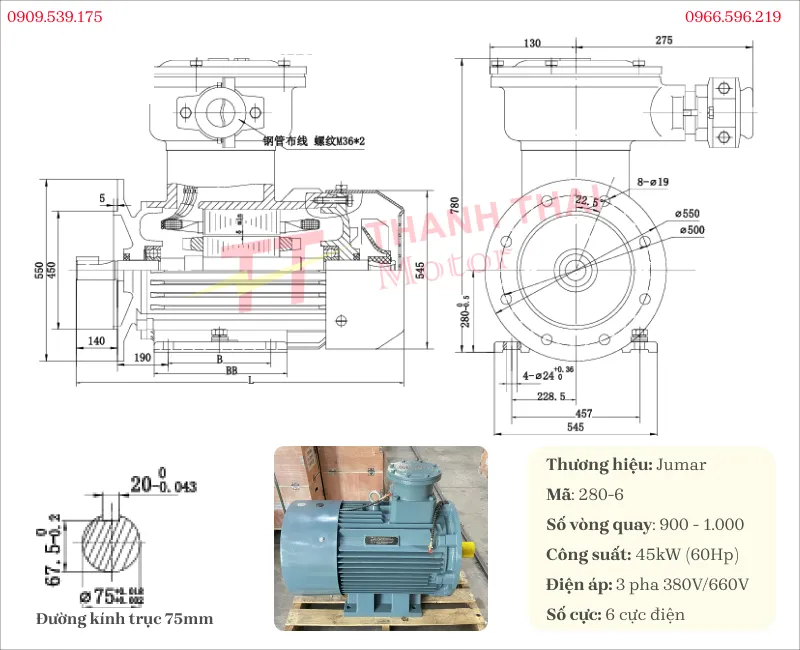

Explosion-proof motor 45kW 60Hp 6 poles (900 – 1,000 rpm)

Built with a significantly larger frame size to accommodate a high volume of multi-pole copper windings, generating extremely tremendous torque, specialized for handling heavy continuous inertial loads.

Technical specifications:

Model	280S
Shaft diameter	75mm
Keyway	20mm
Flange diameter	550mm
Weight	520kg
Dimensions	1000 x 550 x 700 mm
Mounting type	Foot-mounted (B3), Flange-mounted (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Practical applications:

• Chemical tank agitation systems: Providing powerful kinetic energy to rotate agitator blades in large-capacity solvent reaction tanks, industrial paints, and chemical adhesives.
• Bucket elevators, ore mine chain conveyors: Pulling bucket elevator systems for lifting stones and ores in steep, humid, and gas-filled mine shafts.
• Ball mills: Operating material grinding drums requiring continuous heavy drag force, ensuring no speed drop when fully loaded with raw materials.

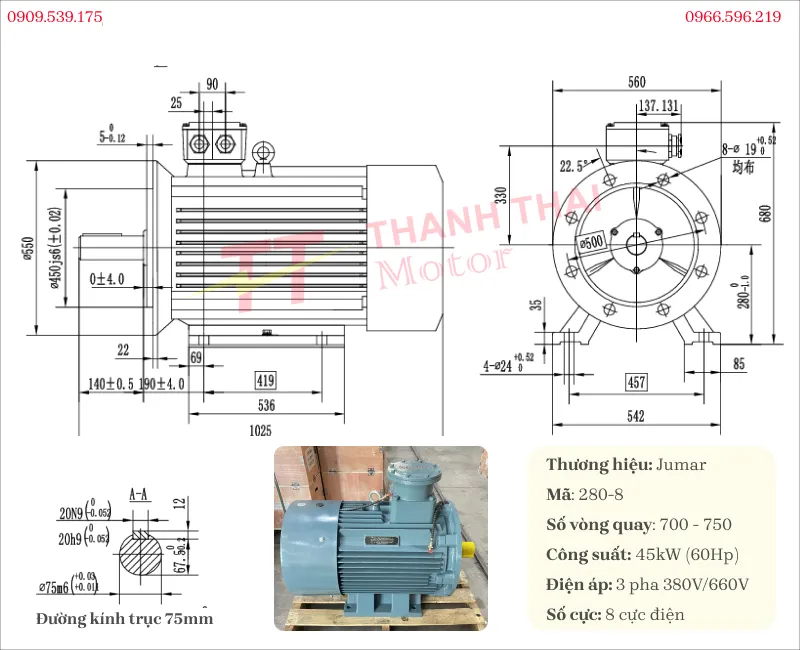

Explosion-proof motor 45kW 60Hp 8 poles (700 – 750 rpm)

Possessing an extremely slow rotational speed, fully converting 45kW into maximum initial twisting force. The motor housing frame is designed very large (frame code 280M) to safely handle heavy loads.

Technical specifications:

Model	280M
Shaft diameter	75mm
Keyway	20mm
Flange diameter	550mm
Weight	520kg
Dimensions	1000 x 550 x 700 mm
Mounting type	Foot-mounted (B3), Flange-mounted (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Practical applications:

• High-safety winches and cranes: Applied for drilling rig anchor winches, explosion-proof hoists in weapons and military explosive storage facilities.
• Mechanical pressing and stamping machines: Pulling hydraulic scrap metal presses in chemical environments requiring slow RPM and super-large pressing force.
• Drying drums, rotary kilns: Operating chemical drying kilns and waste treatment rotating drums requiring extremely slow movement and absolute spark prevention.

Which gearbox does the 45kW 60Hp explosion-proof motor combine with?

Pairing the 45kW explosion-proof motor with drive equipment requires extremely strict safety factor calculations to ensure the gearbox is not broken under the pulling force of the 60Hp motor.

• Heavy-duty gearbox (Large R, K, F series): This is the standard solution. Large gearbox models such as R97, R107 or K97, K107 fully immersed in oil are typically used to drive mine conveyor systems.
• Planetary gearbox: Perfect combination for lifting winches and explosion-proof hoists thanks to its ability to withstand super-large twisting forces in a compact size.
• Drive coupling: It is mandatory to use hydraulic couplings or ATEX explosion-proof standard steel disc couplings for smooth startup, elimination of mechanical shock loads, and prevention of friction-generated sparks.

Instructions on how to wire an explosion-proof motor

To ensure the practical process is safe and accurate, you should first refer to electric motor videos to clearly understand the structure and operating principles of the explosion-proof motor.

Step 1: Check initial parameters

In electric motor videos, the introduction typically presents detailed technical specifications of the equipment. Understanding this information helps you determine the correct wiring method before proceeding.

Step 2: Remove the terminal box cover

Use specialized tools to remove the bolts and open the terminal box cover. This is a characteristic area of the explosion-proof motor, usually marked with “EX” for easy identification.

Step 3: Identify the terminal posts

Once the cover is opened, the copper wiring terminals will be exposed inside. Observe and accurately identify the 3 terminals marked U, V, W to prepare for power supply.

Step 4: Perform electrical wiring connection

Prepare 3 power cables and connect them sequentially to the U, V, W terminals. Ensure that the connections are tightly fastened to limit electrical sparking during operation.

Step 5: Completion and further reference

After completing the basic wiring, you can refer to advanced methods through the technical instruction compilation video from Thanh Thái Motor, helping to improve skills and ensure safe operation for various motor lines.

Warranty, shipping and commitment policy at Thanh Thai Motor

Warranty up to 24 months

All electric motor products distributed by Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers who purchase electric motors can completely rest assured with a transparent, fast, and professional after-sales policy.

Nationwide Shipping

Thanh Thai Motor supports nationwide shipping for all electric motors sold, ensuring safe and on-time delivery to every province across the country. Whether you are in the North, Central, or South, we are ready to serve you.

European Standard Quality – German Technology

Thanh Thai Motor sells electric motors manufactured with German technology, meeting European quality standards, ensuring durability, high efficiency, and stable operation for a long period – suitable for the strict requirements of industrial electric motors.

Competitive Prices – Attractive Offers for Dealers and Wholesale Customers

We commit to reasonable motor prices, offering the best electric motor products with high discount policies for bulk purchasers and distribution units. The more you buy – the better the profit.

Quality Commitment – Powerful Operation, Power Saving

Thanh Thai Motor sells electric motors wound with 100% copper wire, helping the machine run powerfully, consume less electricity, operate smoothly, and effectively reduce vibration – extending equipment lifespan. When purchasing an electric motor, prioritizing products with 100% copper core will be a wise decision, bringing long-term value.

At Thanh Thai Motor, we provide a full range of products, with various phases and capacities, such as:

• 220V electric motors (or 220V 1-Phase electric motors) are 1-Phase electric motors commonly chosen for many household appliances and light industrial equipment, offering convenience and efficiency.
• 380V electric motors are 3-Phase electric motors using three-phase power, commonly used in heavy industrial applications.

Full CO, CQ Certification Documents

Thanh Thai Motor provides the best quality electric motors. Each imported electric motor product from Thanh Thai Motor comes with a Certificate of Origin (CO) and a Certificate of Quality (CQ), meeting the requirements for large projects, constructions, and strict technical documentation.

Contact for Purchase

Do you need to buy an electric motor or seek advice on choosing an affordable electric motor that suits your needs? Contact Thanh Thai Motor immediately using the methods below:

• WhatsApp: +84966596219
• Email: codienthanhthai@gmail.com

The Explosion-Proof Motor 45kW 60HP is the ideal solution for businesses operating in hazardous environments prone to fires and explosions. With a durable design, impact-resistant cast iron housing, 100% copper windings, and stable operation in harsh conditions, the product delivers high performance, maximum safety, and long service life. If you are looking for a genuine, large-capacity, competitively priced explosion-proof motor, contact Thanh Thái Motor immediately for the fastest consultation!
