NMRV 90 Gear Motor 4kW 5.5Hp

NMRV 90 gear motor is a gear motor formed by combining an electric motor and a gearbox. With a flexible design, stable transmission capability, and diverse applications in many production fields, this product is currently one of the popular choices for industrial transmission systems requiring high performance and durable operation.

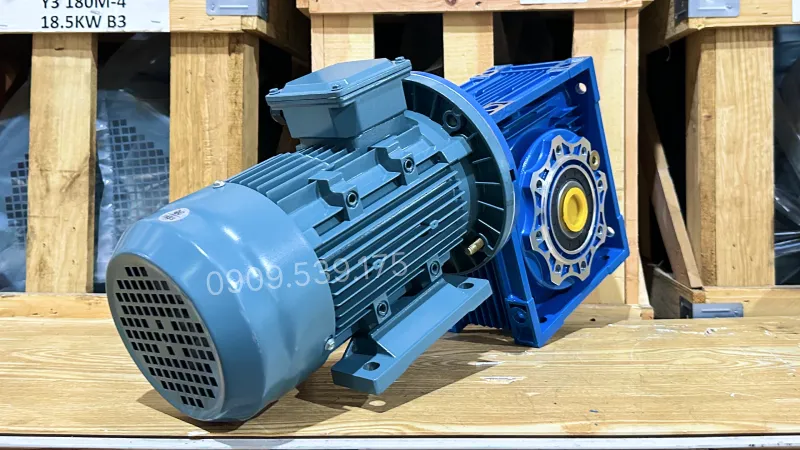

Overview of NMRV 90 gear motor design

NMRV gear motors have an external structure made of cast iron or aluminum, accompanied by an external electrostatic paint layer to help protect against environmental corrosive harmful agents and minimize scratches.

NMRV 90 gear motor is a product perfectly combined with a 3-phase electric motor and an NMRV gearbox, specifically a 3-phase 4kW 5.5Hp electric motor.

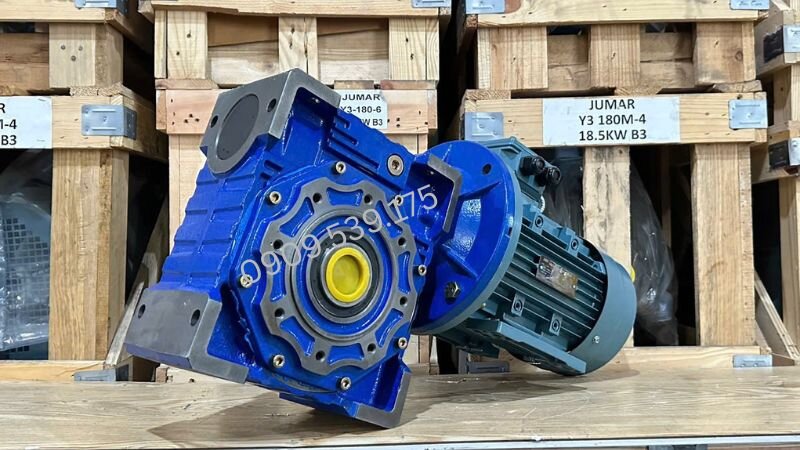

Structure of NMRV 90 gear motor

NMRV 90 gear motor is a 3-phase gear motor commonly used by customers as follows:

• 3-Phase 4kW 5.5Hp electric motor:
  • Stator: The stationary part, consisting of a steel core and copper windings. The steel core is made of stacked silicon steel sheets with slots for windings, which are connected to an AC power source to create a rotating magnetic field.
  • Rotor: The rotating part, constructed from technical steel sheets, creating a rotating magnetic field induced by the stator to generate torque.
• NMRV 90 gearbox:
  • Gear: Made of high-temperature steel, helping to withstand high temperatures and heavy loads, creating a variety of gear ratios.
  • Worm shaft: Installed as a hollow shaft, constructed from steel to help dissipate heat, prevent heavy overload, and enhance operational capability.

Technical specifications of NMRV 90 gear motor

The NMRV 90 gear motor is composed of a 3-phase 4kW 5.5Hp electric motor and an NMRV 90 gearbox. Below are the detailed technical specifications of each component, helping customers easily refer to and choose the right product for their application needs.

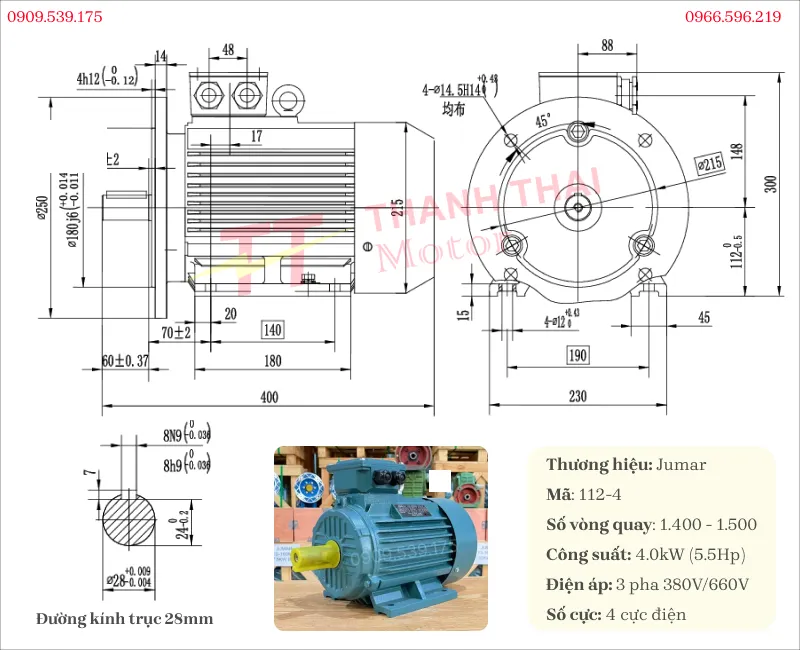

Technical specifications of 3-phase 4kW 5.5Hp electric motor

Featuring a durable design, stable operation, and well-meeting the demand for continuous work in various industrial environments. Below are the detailed technical specifications of the product:

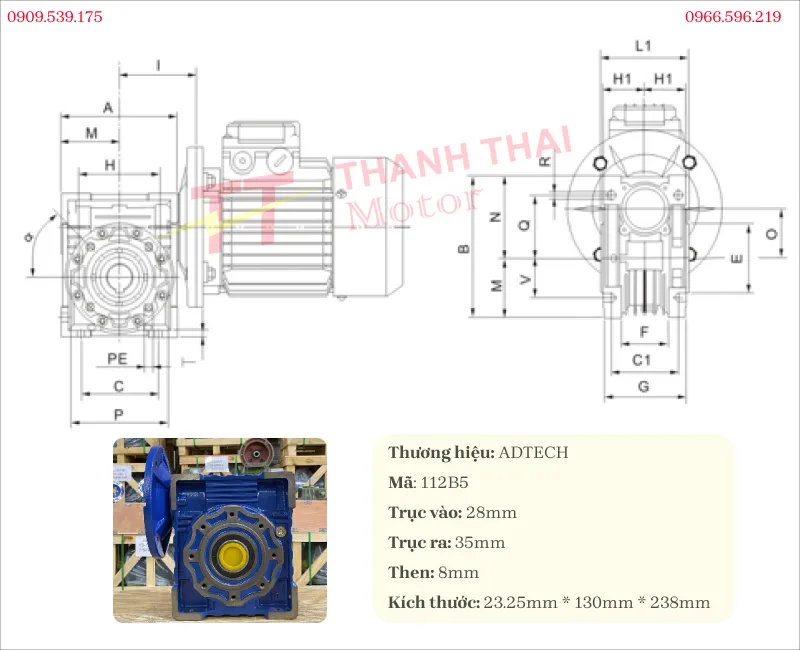

Technical specifications of NMRV 90 gearbox

With a compact structure, stable operation, and efficient gear reduction. Below are the basic technical specifications of this NMRV gearbox:

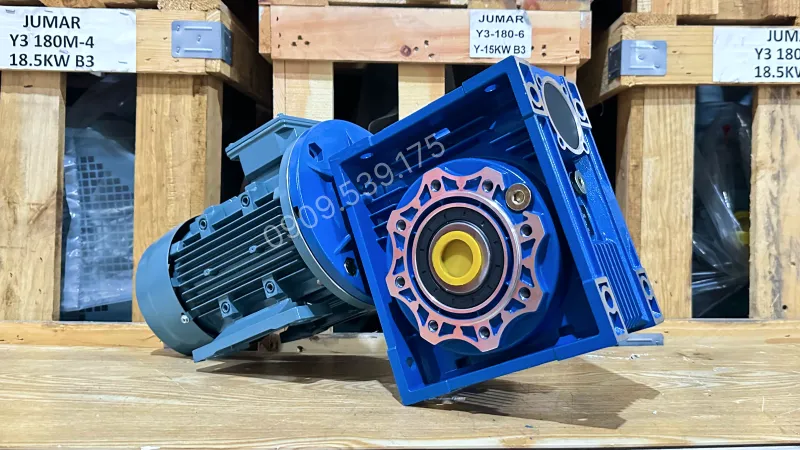

Applications of NMRV 90 gear motor

The NMRV 90 gear motor product line, belonging to the gear motor segment from 1.1kW to 3.7kW, is commonly used for factories with equipment and machinery:

• Conveyors: This motor is very suitable for conveyor systems where speed reduction and torque multiplication are needed to transport materials.
• Mixers and cutters: Used in industrial machinery requiring high torque such as mixers in food production and cutters in the woodworking industry.
• Food and pharmaceutical processing industries: Used in food processing lines, packaging machines, and equipment requiring slow speed but strong pulling force.

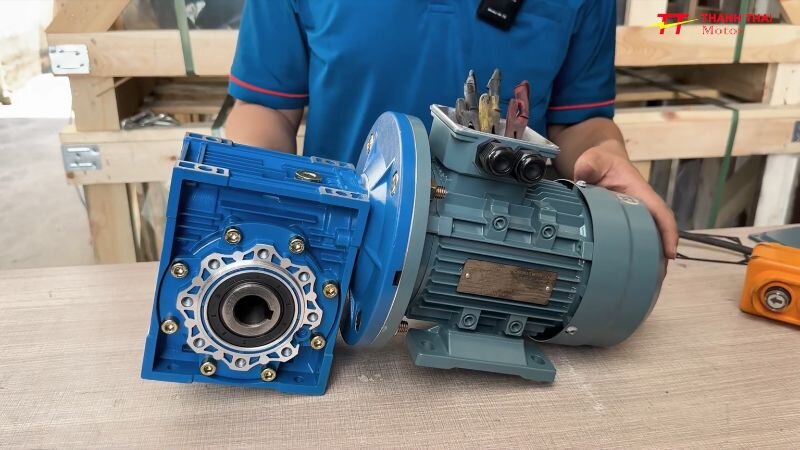

Guide to installing NMRV on 3-phase motor

Step 1 – Basic preparation:

• Check the input shaft dimensions of both devices to ensure a proper fit.

Step 2 – Shaft assembly stage:

• Gently push the motor into the gearbox, taking care not to use excessive force or directly hammer onto the shaft if it does not fit, to avoid damaging the bearings.
• Install 4 fixing bolts into the motor flange and gearbox.
• Use a wrench to securely tighten these bolts, ensuring the motor is not misaligned with the gearbox.

Step 3 – Electrical wiring stage:

• Use a screwdriver to open the terminal box of the motor.
• Connect the power wires to the terminal posts according to technical standards to prevent short circuits and burning.

Step 4 – Verification stage:

• Supply power to test run the equipment.
• Ensure the NMRV gearbox rotates in the correct direction and achieves the design-required speed.

NMRV 90 gear motor is an efficient transmission solution for various machinery systems thanks to its compact design, stable operation, and ability to generate high torque. The product is suitable for conveyor applications, mixers, presses, and many industrial production lines. To receive the latest quotation, advice on selecting the appropriate gear ratio, as well as reference comprehensive videos and actual gear motor videos, please contact Thanh Thai Motor via hotline 0909.539.175 for prompt support.
